• Channel64
• Range0.3 to 200 m (at 10% reflectivity)
• Range Accuracy±5 cm (0.3 to 1 m)
• Resolution (Vertical)0.167° (-6° to 2°)

Scanning MethodMechanical Rotation

Channel64

Range0.3 to 200 m (at 10% reflectivity)

Range Accuracy±5 cm (0.3 to 1 m)

±2 cm (1 to 200 m)

FOV (Horizontal)360°

Resolution (Horizontal)0.2° (10 Hz)

0.4° (20 Hz)

FOV (Vertical)40° (-25° to 15°)

Resolution (Vertical)0.167° (-6° to 2°)

1° ( 2° to 3° , -14° to -6°)

2° ( 3° to 5°)

3° ( 5° to 11°)

4° ( 11° to 15°)

5° (-19° to -14°)

6° (-25° to -19°)

Frame Rate10 Hz, 20 Hz

ReturnsSingle Return

Dual Return (Strongest, Last)

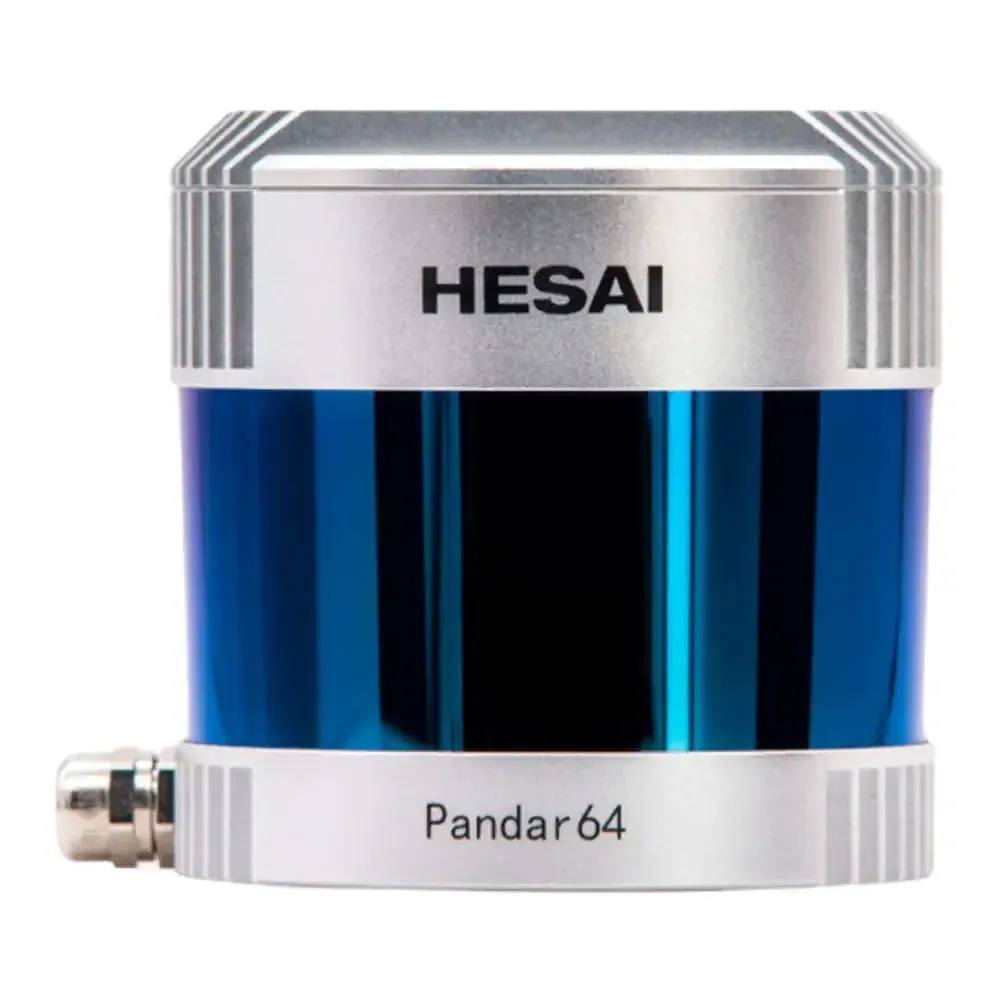

With a 360° horizontal field of view and high vertical resolution, the Lidar 64 provides comprehensive environmental mapping with remarkable detail. The dual return feature allows for enhanced data accuracy, making it an ideal choice for dynamic environments.
