Manufacturer Cat No: 119-012-12

Range: 0 mm - 300 mm
Resolution: 0,01 mm or 0.0005 in
Accuracy: ±0,05 mm

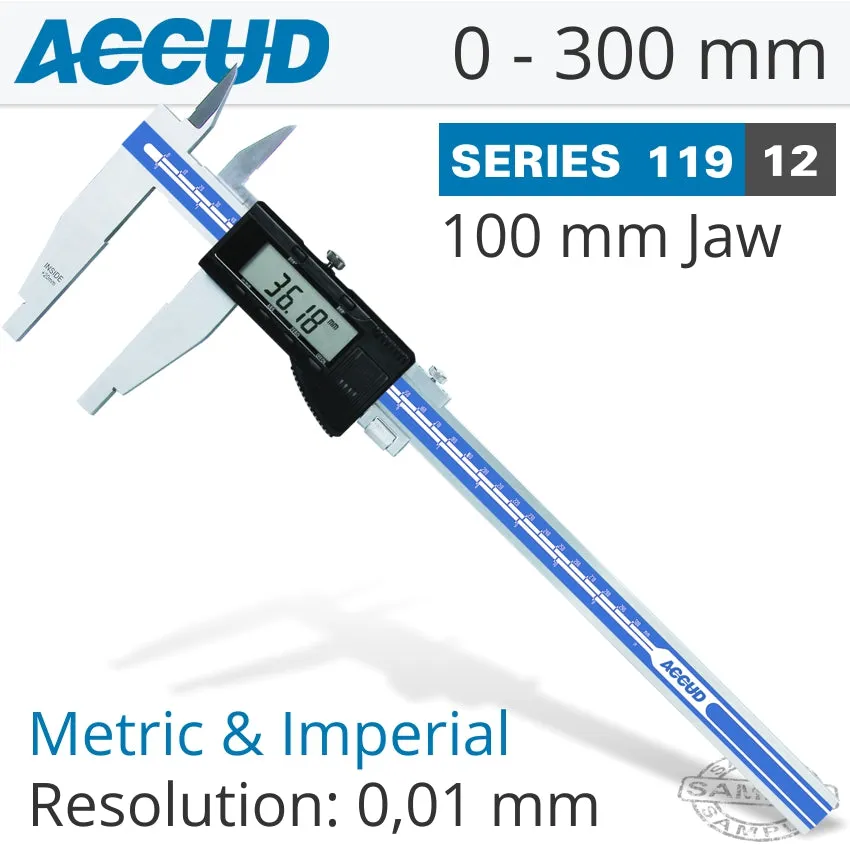

Electronic Caliper with extended jaws

Professional quality workshop electronic caliper with measuring range of 0 - 300 mm | 12' (in) and measuring resolution 0,01mm / 0.0005'. A USB data output slot makes measurement recording possible to a computer. Data cable code 100-15.

When using the caliper for inside measurements with the long jaws, add 20mm as engraved on the jaw end. See measurement explaind as 'w' in the specifications tab.

Made of stainless steel.

Features at a glance

• Resolution: 0.01mm / 0.0005'
• Buttons: on/off, zero, mm/inch, ABS, data preset
• Data output (cable code:100-15)
• 100 mm jaw length
• Made of stainless steel

Technical parameters:

Description	Spec
Measurement range:	0-300mm / 12 '
The length of the jaws h:	100 mm
Resolution:	0.01 mm | 0.0005 '
Accuracy:	± 0.05 mm
Jaw marking:	for internal measurements add 20mm
Dimension a:	12 mm
Dimension c:	24 mm
Dimension w:	20 mm
ABS function	YES
Button Off / On:	YES
ZERO button:	YES
mm / inch switch:	YES
Data output socket:	YES (Cable code 100-15)
Lock type:	screw
Construction:	stainless steel

---
