Introduction:

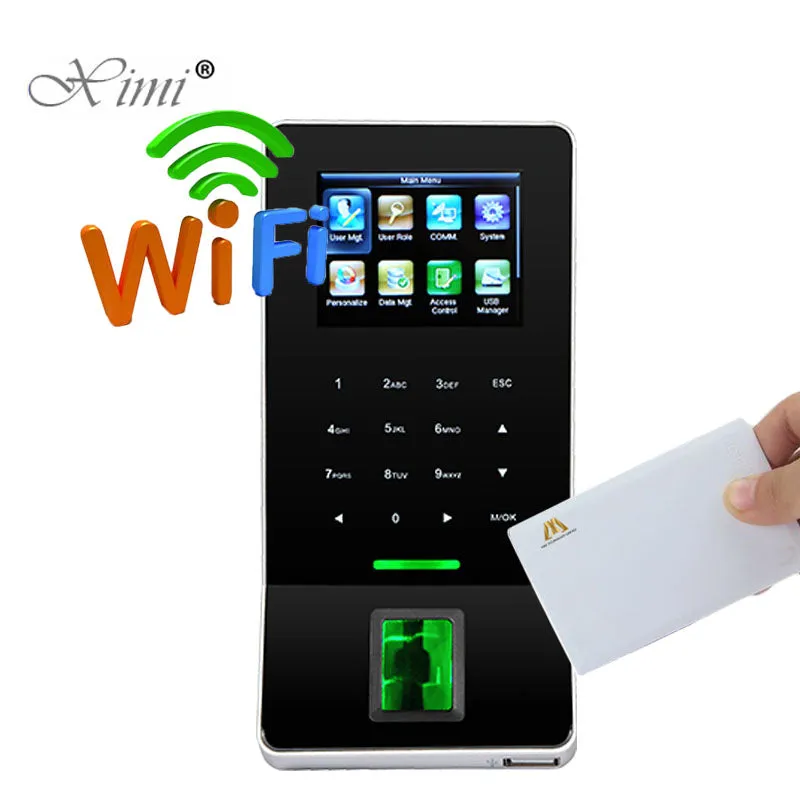

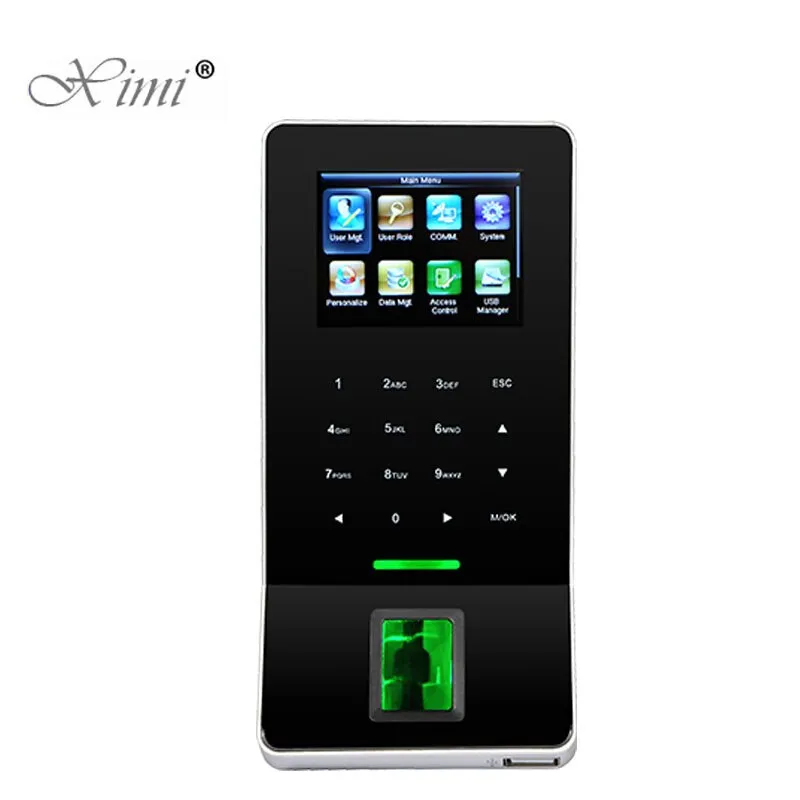

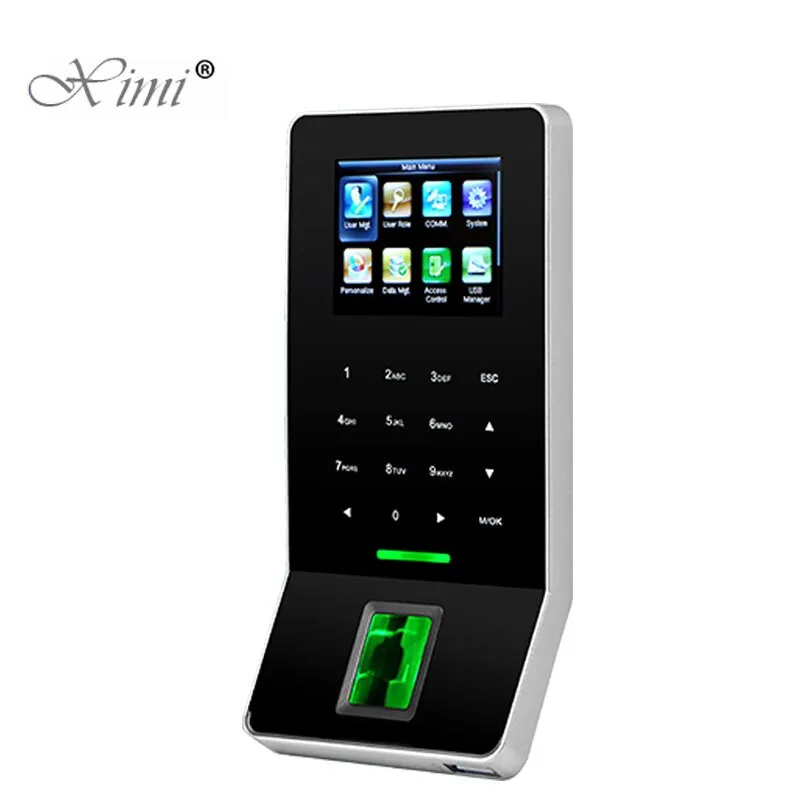

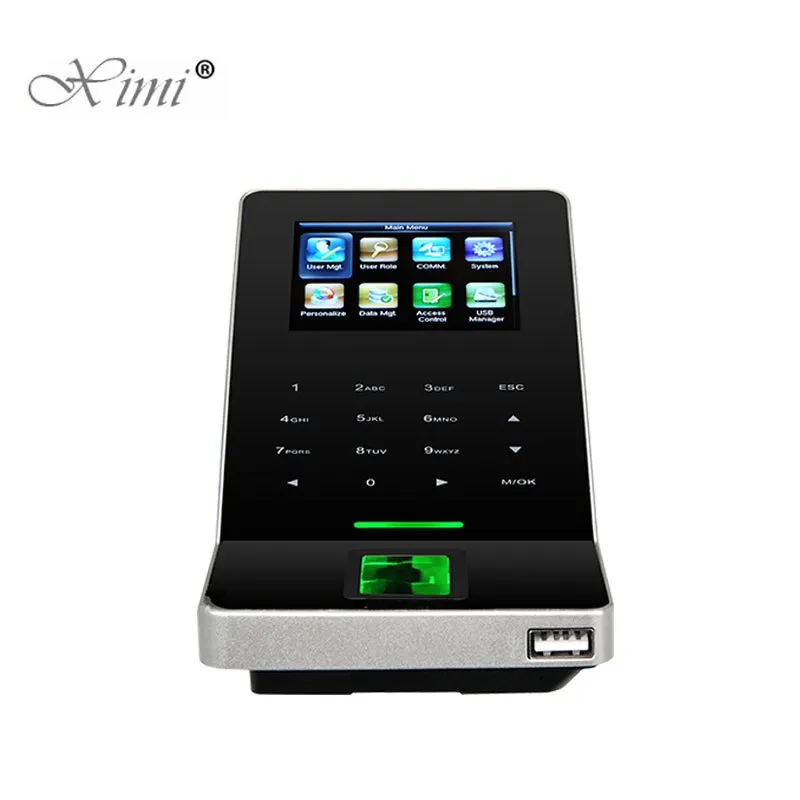

F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
Function:
• 2.4-inch TFT color screen and Touch keys
• Ultra thin and elegant design
• Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door
sensor, exit button, alarm
• Standard Wi-Fi
• Network interface by TCP/IP or RS485
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
Specifications:
|
Model
|
F22
|
|
Software
|
ZKAccess3.5
|
|
Display
|
2.4-inch TFT LCD Color Screen
|
|
Fingerprint sensor
|
ZK Optical Sensor
|
|
Algorithm Version
|
ZKFinger V10.0
|
|
Fingerprint Capacity
|
3,000
|
|
Card Capacity
|
5,000
|
|
Log Capacity
|
50,000
|
|
RF Card
|
MF(standard)/EM(optional)
|
|
Authentication Method
|
FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF
|
|

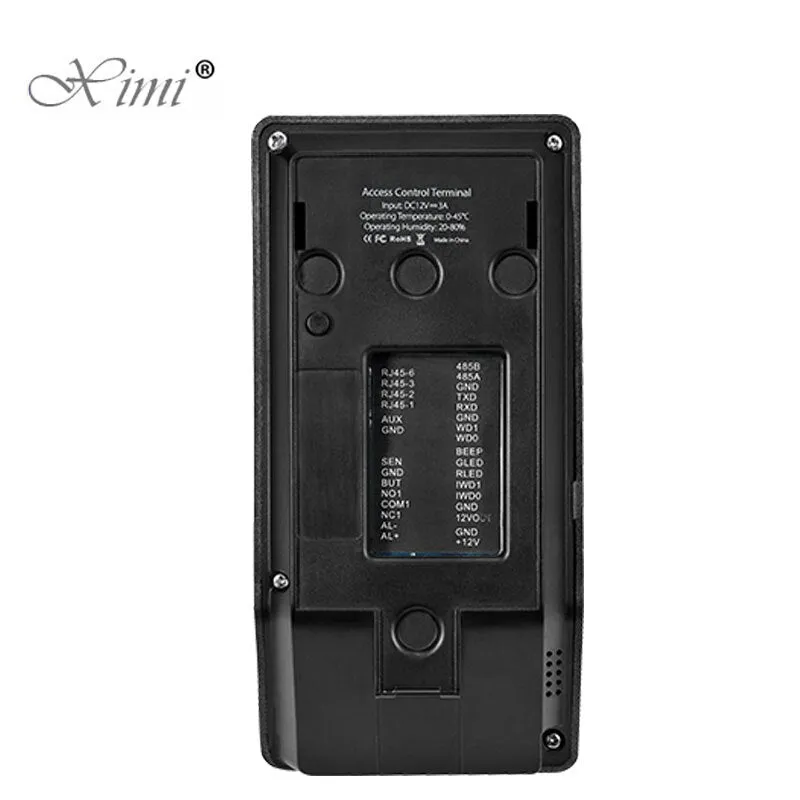

Access Control Interface
|
Electric lock, Door sensor, Alarm, Exit button
|
|
Communication
|
WIFI,TCP/IP, RS232/485,USB-host
|
|
Wiegand Signal
|
Wiegand input&output
|
|
Functions
|
DST,Automatic status switch,Record query,T9 input,14 digit user ID,Anti-passback,Scheduled-Bell,ADMS(Optional)
|
|
Power Supply
|
12VDC 3A
|
|
Operating Temperature
|
0~ 45
|
ZK F22 WIFI Biometric Fingerprint Access Control System With MF Card Reader Fingerprint Time Attendance With BioID Live Sensor$ 65.03 $ 50.02 Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable
