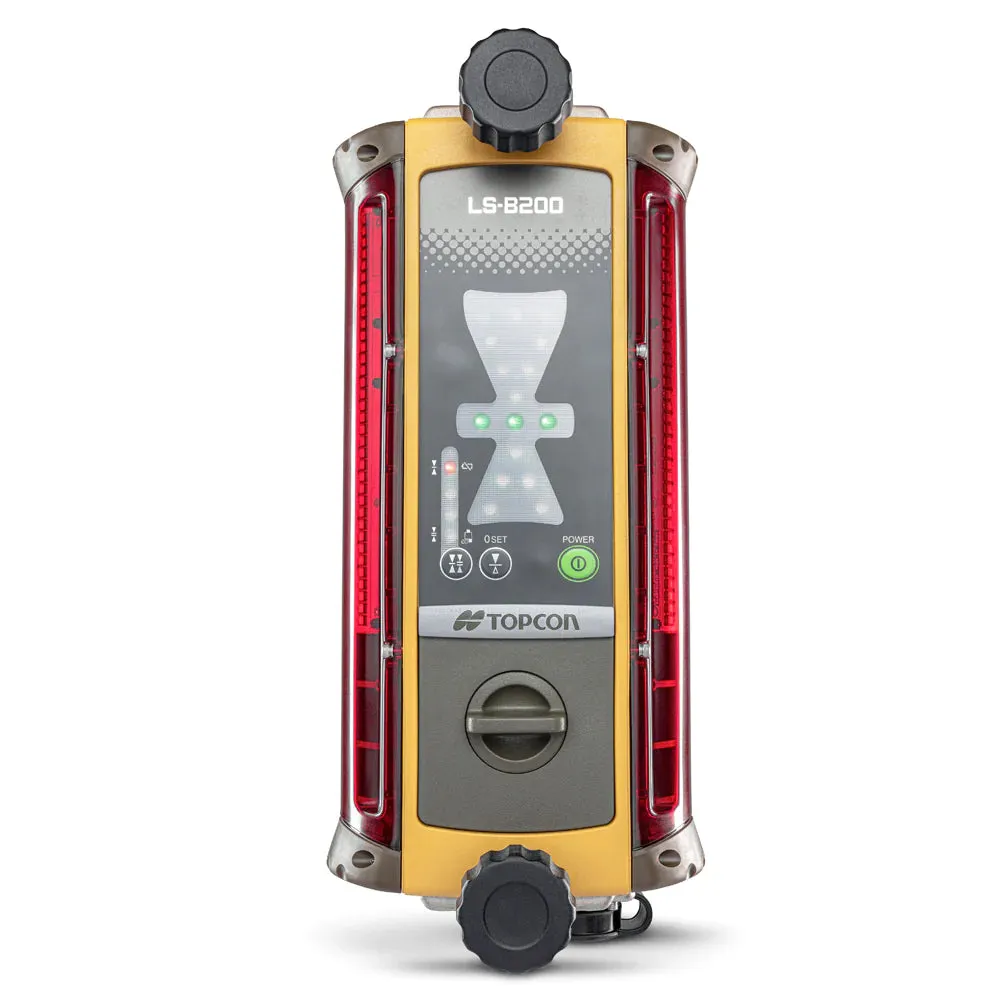

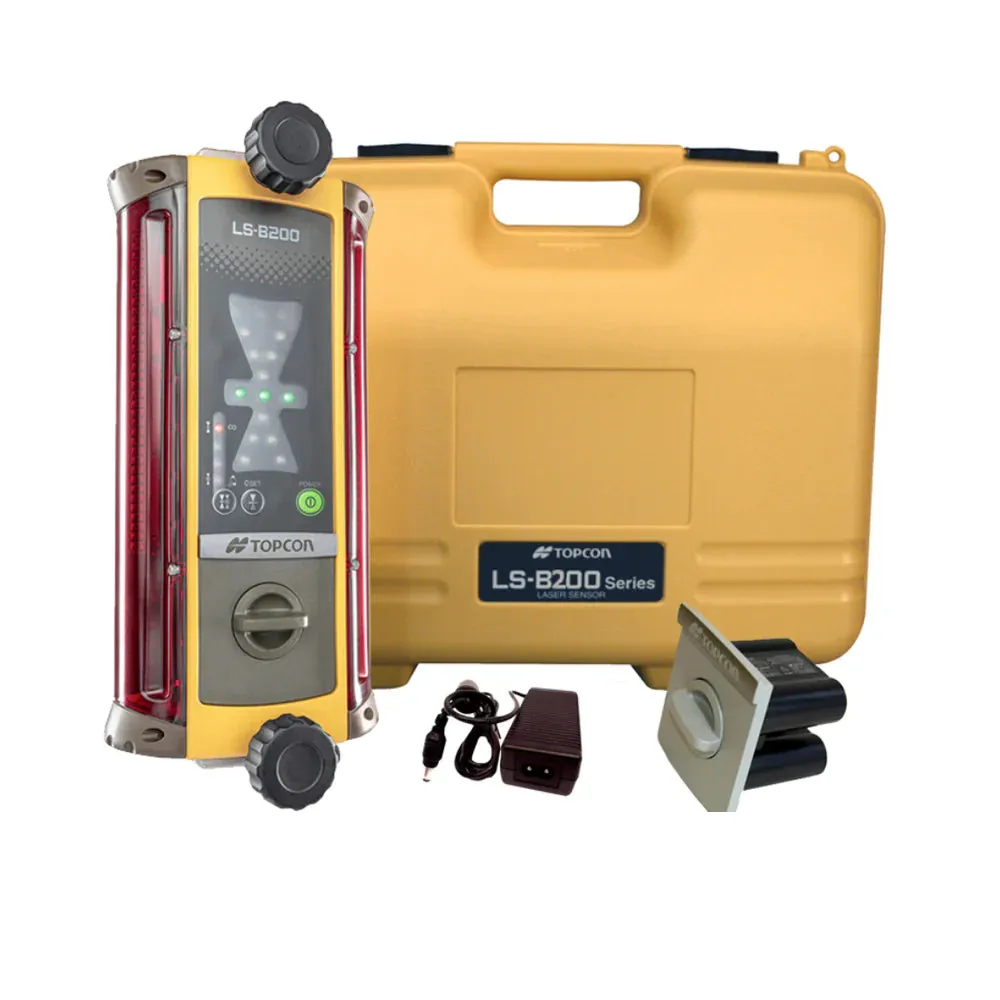

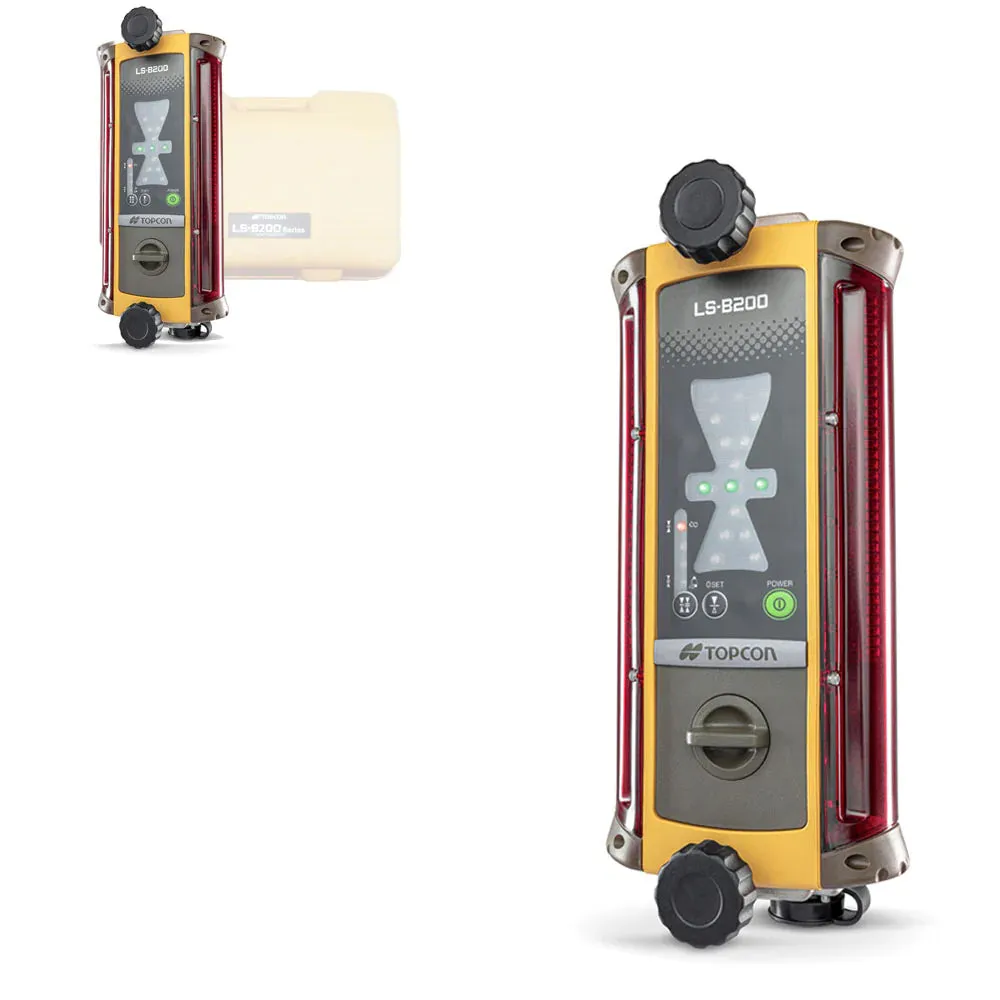

The Topcon LS-B200 Machine Control Laser Receiver is ideal for construction professionals looking to enhance efficiency and accuracy when measuring ground and sloped terrains. It can be used with a variety of heavy machinery, such as dozers, excavators, backhoes, drag-boxes, and scrapers, and provides a full 360-degree detection angle for optimal performance and reliability in the field. With a rugged build quality, the LS-B200 is designed to withstand the demands of construction sites and can operate in extreme temperatures ranging from -20C/-4F to 50C/122F.

Key Features

360-degree Detection Angle: Maximizes operational efficiency with comprehensive coverage.

High-Quality, Multi-Colored LED Screen: Provide clear and easy-to-read results, supporting user experience and accuracy.

Four Detection Precision Modes: Cater to varied project requirements, offering flexibility and precision in measurement.

LED Indicators: Provide instant feedback on battery status and selected options.

One-Touch "On Grade" Matching: Simplifies the process of recording surveying measurements.

Wide Detectable Laser Wavelength Range: Accommodates a range from 633 to 785nm, suitable for diverse construction applications.

Extensive Detecting Range: Offers an impressive 800m (2625ft) range, expanding the scope of construction and surveying tasks.

Durable Construction: With an IP66 rating, it is guaranteed protection against dust and water, ensuring longevity and reliability.

Versatile Power Options: Operates up to 100 hours on four batteries or a battery pack (sold separately), providing extended use in the field.

Built-in Mechanical Clamps: Enable secure and efficient attachment to machinery, preventing slippage and ensuring consistent performance.

Specifications

Accuracy

• Coarse: ±30 mm
• Fine: ±6 mm
• Medium: ±15 mm
• Super Fine: ±3 mm

Battery/Power

• Battery Life: Up to 100 hours (alkaline) or 50 hours (BT-68Q)
• Low Battery Indicator: Yes
• Power Source: C-size dry cells; Battery pack BT-68Q

Features

• Automatic Shutoff: After 30 minutes
• Display: LED Screen
• Laser Detection Height: 6.8 inches
• LED Indicators: Green On-grade, Red Up, Red Down
• Reception Angle: 360°

General

• Dimensions: 6.2" L x 6.5" W x 14.0" H
• Protection Class: IP66 dustproof and powerful water jet resistant
• Type of Attachment: Mechanical clamp (built-in)
• Warranty: 1-year
• Weight: 4.4 lbs (2 kg)

Temperature

• Operating: -4 to 122 °F (-20 to 50 °C)
