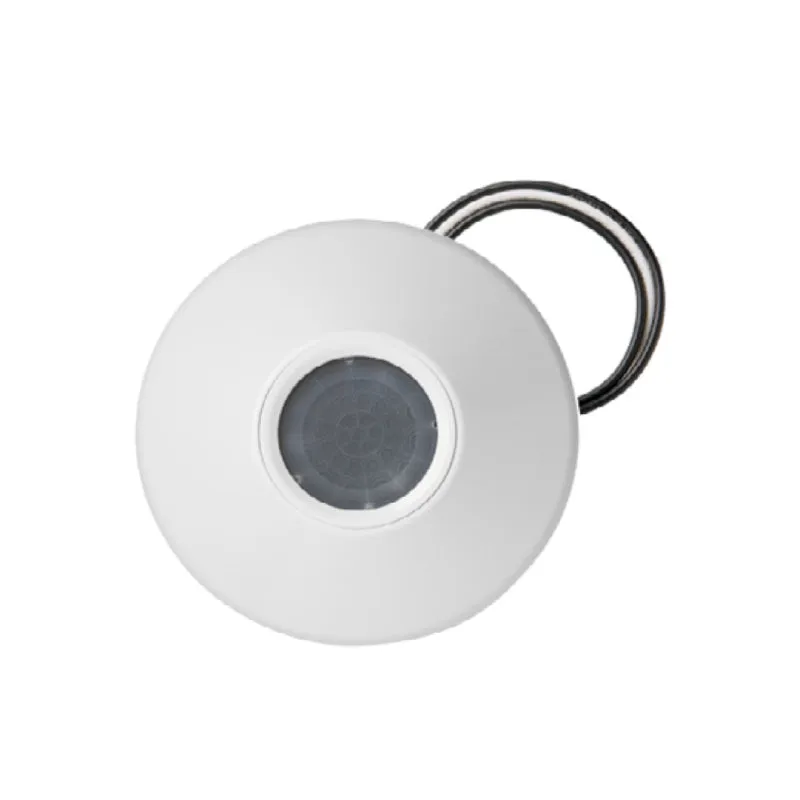

The CMR(B)-ADC Series combines the CMR(B)-PC On/Off Photocell sensor with the CMR(B)-ADC Automatic Dimming Control sensor to provide the industry’s most intelligent control of lighting for daylight harvesting applications. Ideal for public spaces with windows like vestibules, corridors, or bathrooms; the sensors work by monitoring daylight conditions in a room, then controlling the lighting so as to insure that adequate lighting levels are maintained.

Features

• Color: White
• Dimming: On/Off w/ Dimming Control
• Voltage: 120/230/277 VAC
• Temp/Humidity: 14° to 160°F
• Self-Contained Relay, no Power Pack needed
• Digitally Programmable via simple push-button commands
• Dimming sinks up to 20 mA
• No minimum Load Requirements
• 100 Hour Lamp Burn-in Timer Mode

Dimensions

• Diameter: 4.55"

• Height: 1.55"


Warranty

• 5-Year Limited Warranty
