Product Attribute | Attribute Value |
---|---|
Alternate Mfr Part Number | RVM-008GM013 |
Connection Type | 1/4 BSP |
Current Rating | 1 A |
IP Rating | IP65 |
Material | Brass |
Maximum Operating Temperature | 120 °C |
Maximum Pressure Measured | 250 |
Operating Temperature, Maximum | 120 °C |
Shop By | Factory Choice |
Temperature Operating Range | Maximum of 120 °C |
Type | Sensor/Switch with Indicator |
UPC Code | 5056112025245 |
Overview

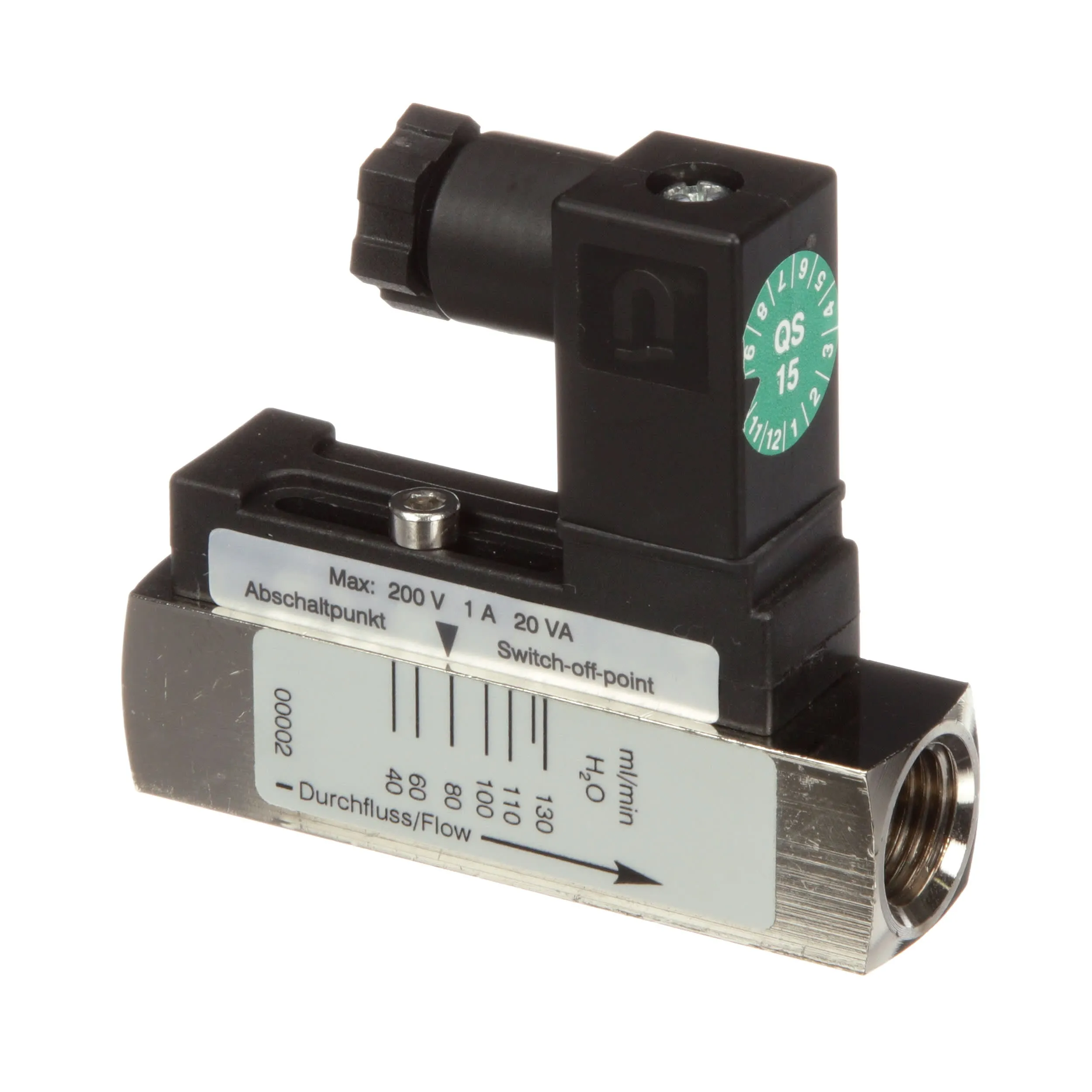

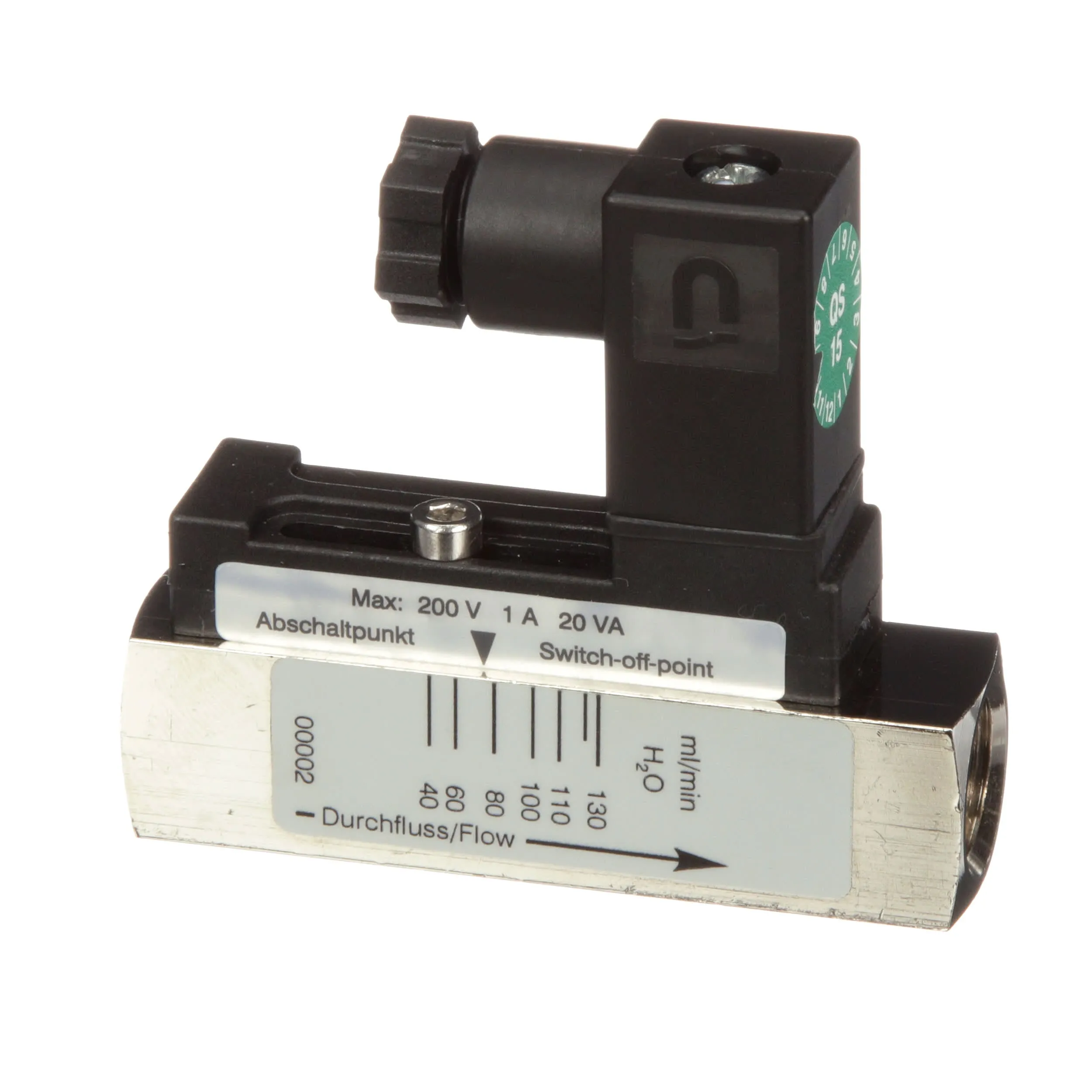

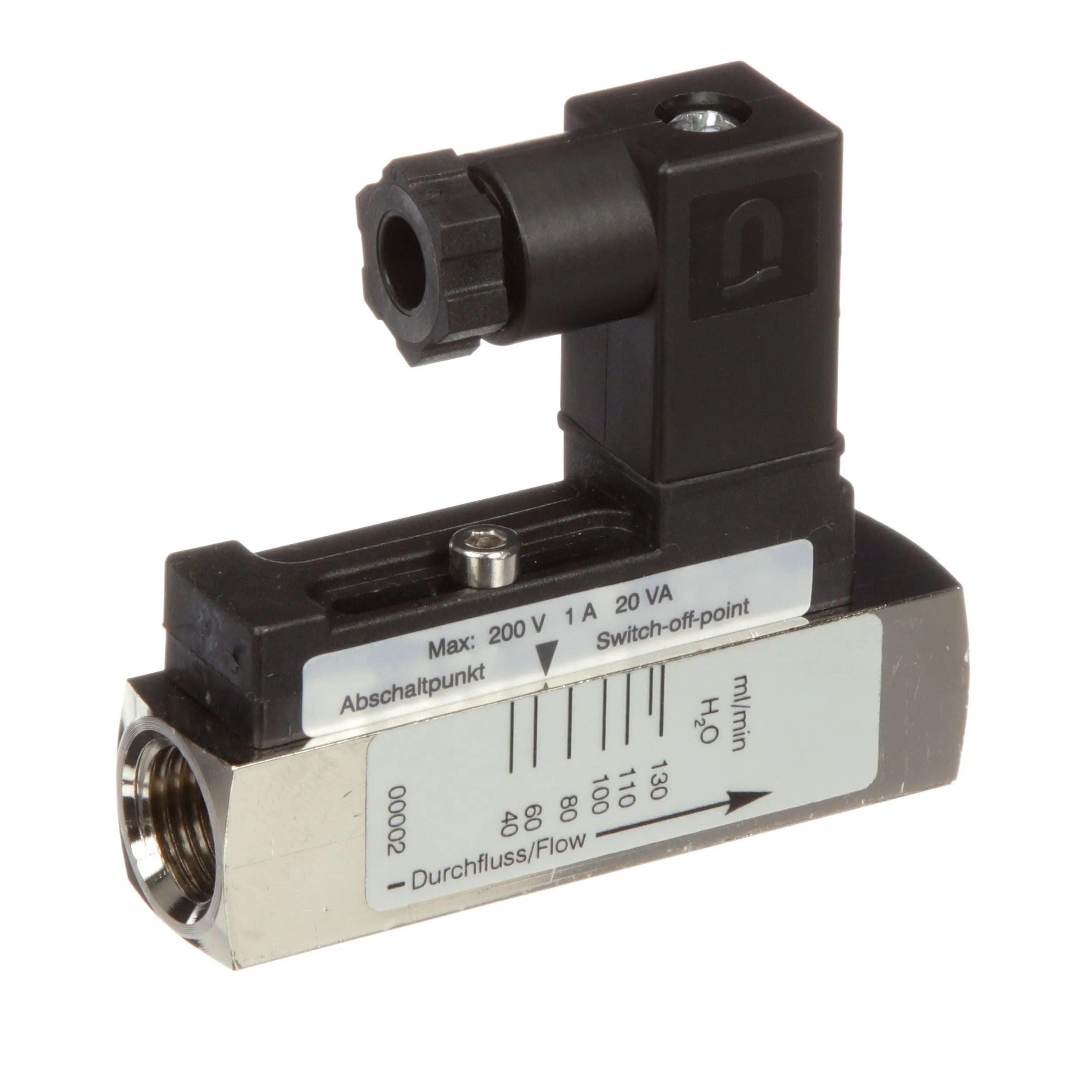

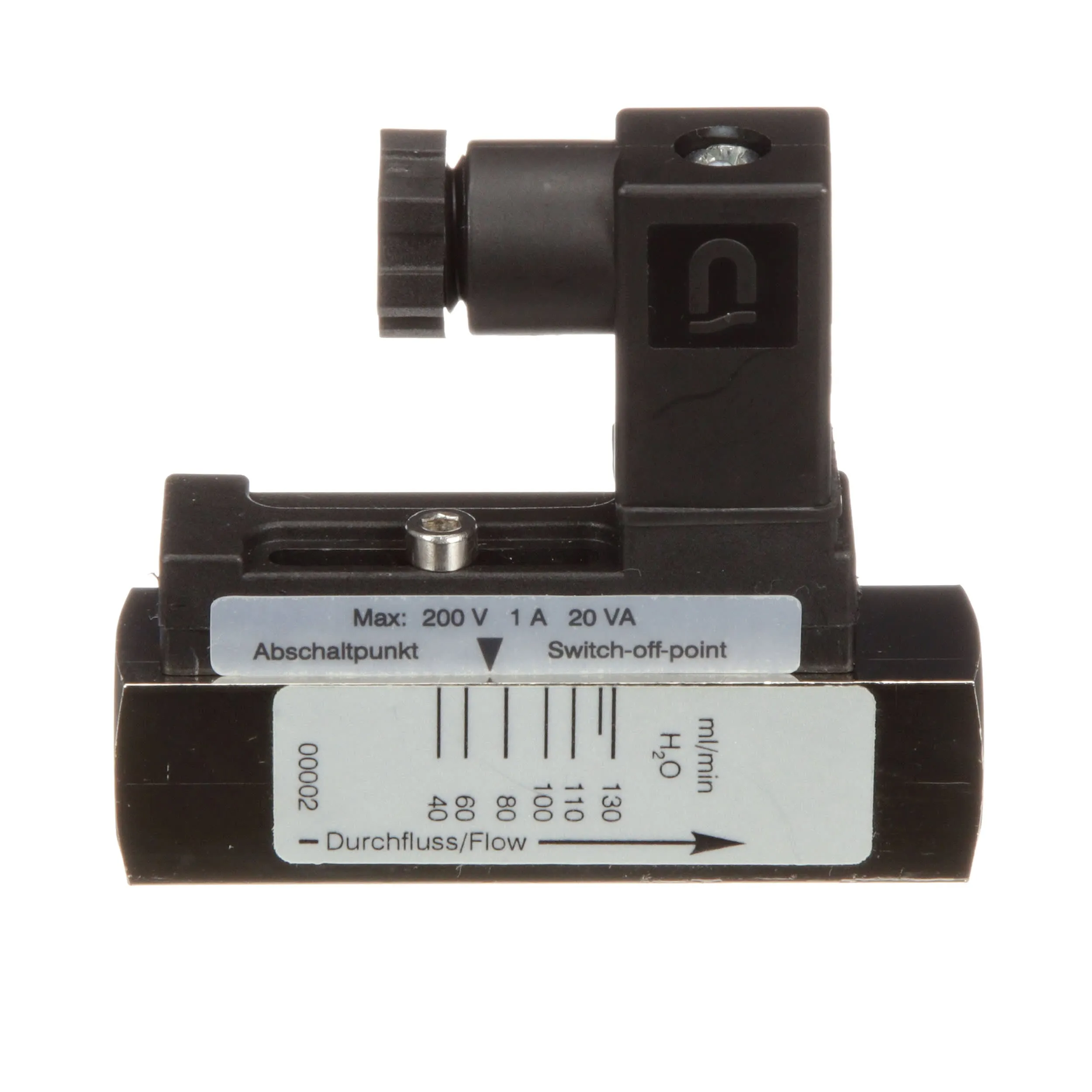

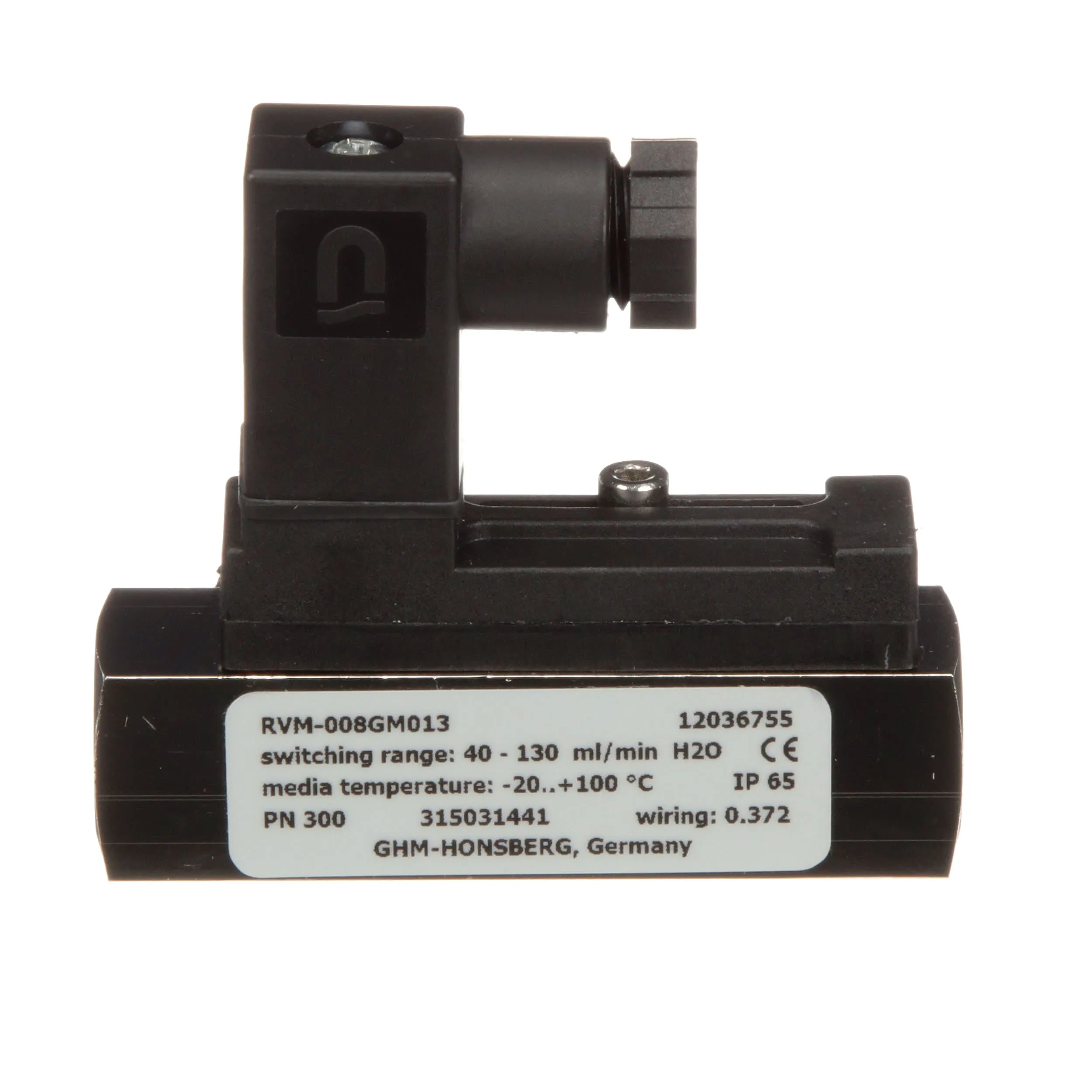

Piston Flow Switch
Monitoring of low flow rates of liquids. A piston equipped with a magnet is displaced by the flow, this action is proportional to the flow rate against a supporting spring. A reed switch on the outside is positioned at the desired point within the control range. A signal is generated when the actual flow rate value is above or below the set value.
