• Shield to allow Arduino to control a door lock
• Provides easy connection of external RFID reader module to Arduino
• Power pass-through jumper
• Reset button wired through to Arduino reset pin

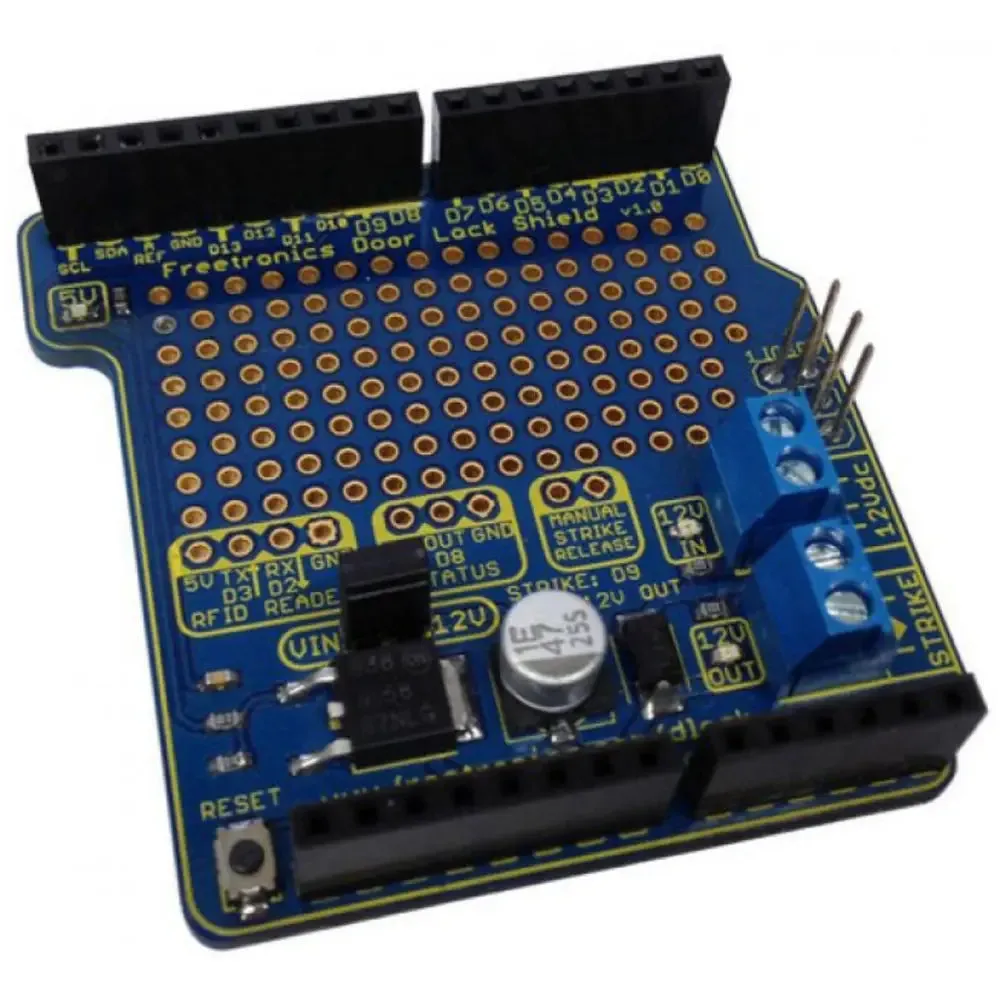

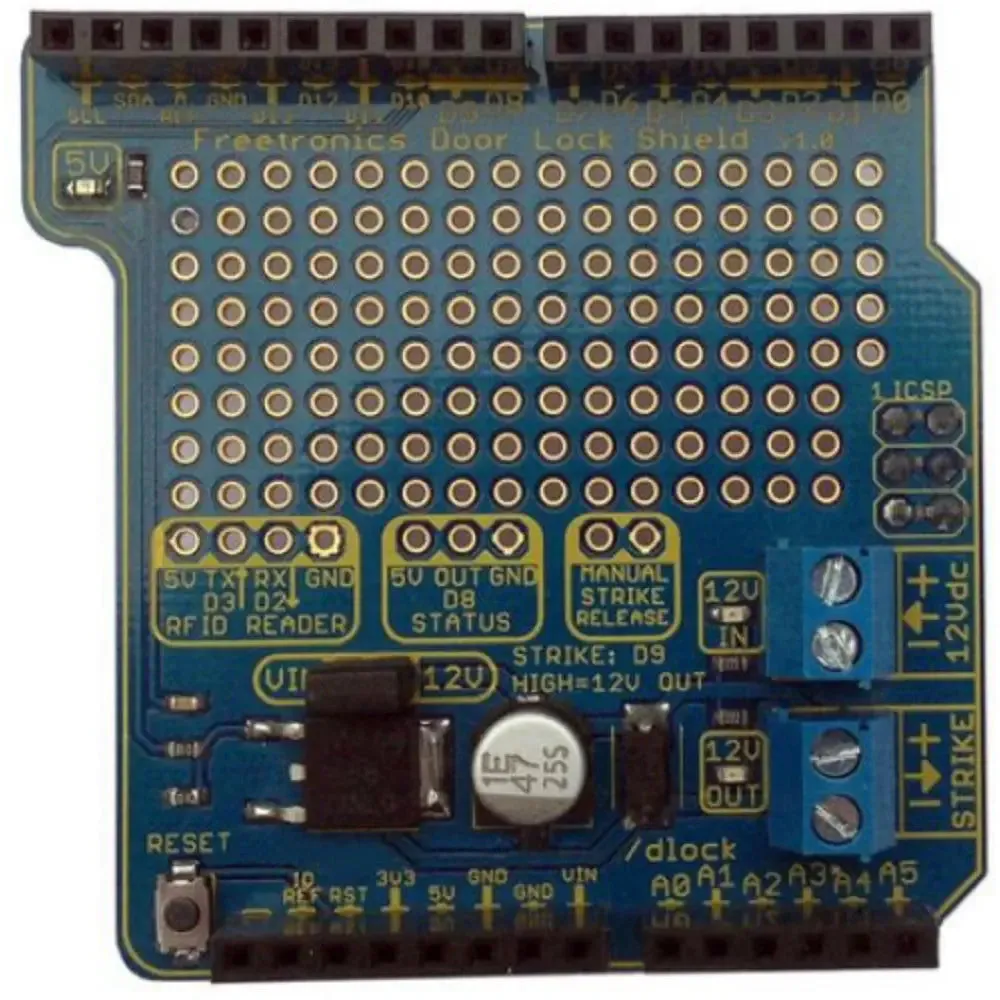

The Arduino RFID Door Lock Shield allows your Arduino to control a door lock using an electric strike plate and one of a number of commonly-available RFID modules, and is based on the circuit described in the "RFID Access Control System" project in the book "Practical Arduino".

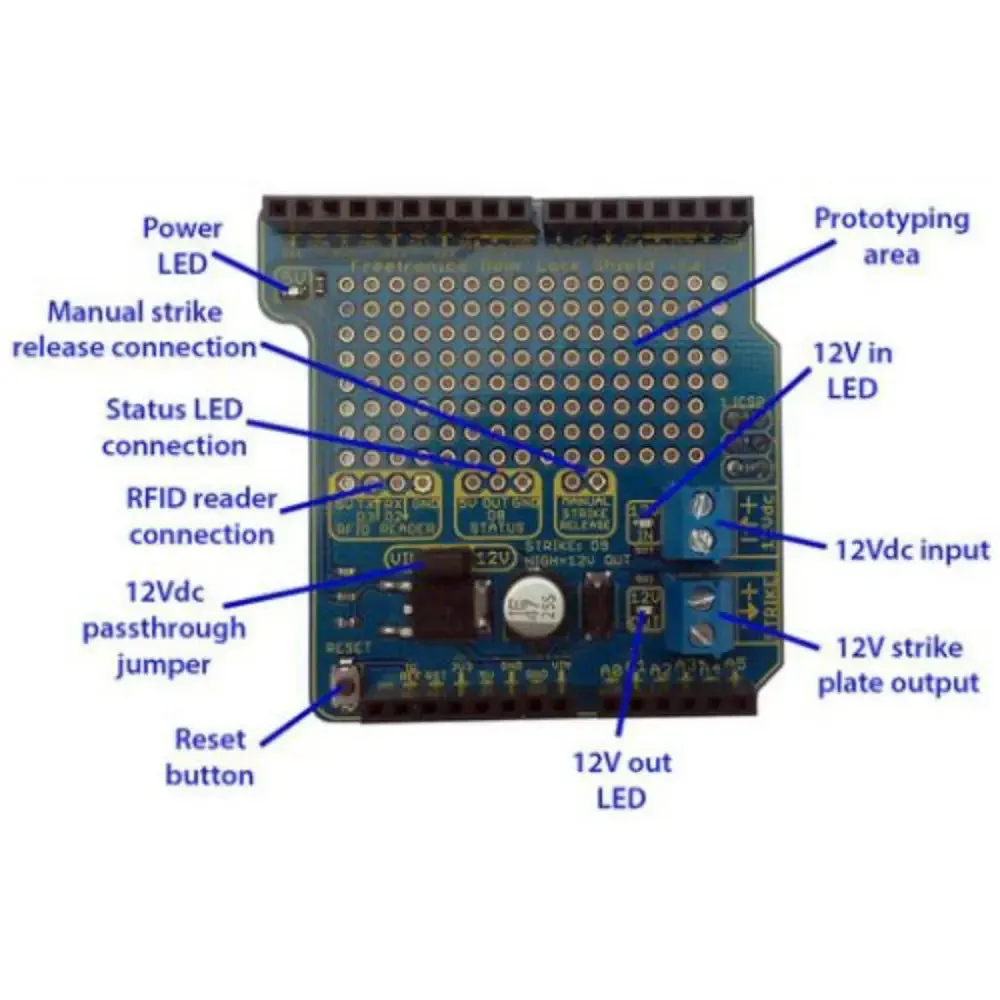

Connections:

• Manual strike release connection
• Status LED connection
• RFID reader connection

LEDs:

• Power LED: Indicates that 5V is present on the Arduino
• 12V in LED: Shows that an external power source is connected
• 12V out LED: Shows that the door strike output is activated

Features

• Connections for RFID reader module
• Connections for status LED output
• Connections for manual strike release
• Output to control 12V electric door strike
• Blue "Arduino power" LED
• Green "External power" LED
• Red "Strike plate activated" LED
• Prototyping area
